HS01-H Shear Lock


HS01-H

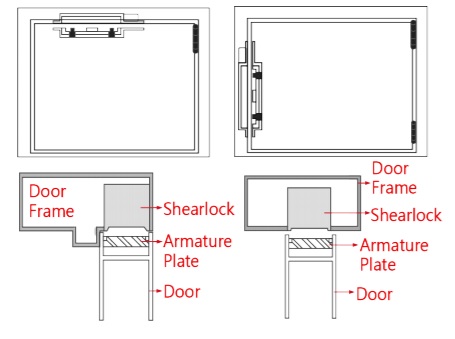

  • Suitable for single and double action door


  • Special Finish : Zinc (on the magnet & armature plate)
  • Black-Painted brackets
  • Adjustable door status position for improved security
  • Voltage : 12V/24VDC (Selectable)
  • Current Draw : 1.6A/12VDC , 0.9A/24VD
  • Holding Current : 0.5A/12VDC , 0.3A/24VDC
  • Holding Force: about 1200LBS
  • Signal: Lock status sensor (Hall), Timer
  • Built-in voltage spike suppressor

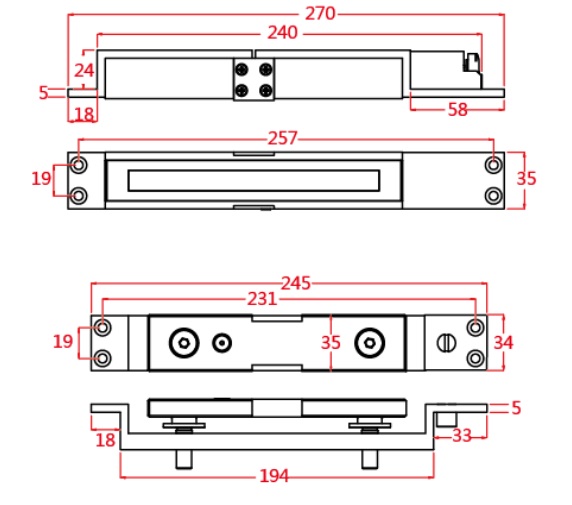

DIMENSION :

  • Magnet: 270mmL*35mmW*30mmD
  • Armature Plate: 245mmL*35mmW*30mmD
